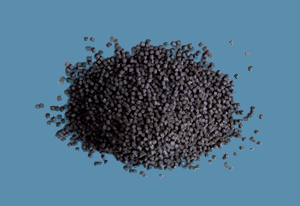

Injection SmCo bonded magnet compound

we can supply Permanent SmCo Compound, Permanent NdFeB Compound and Permanent Ferrite Compound for injection in batches, which possess excellent consistency and stability of magnetic property, especially suitably used for injection moulding process. Use all kinds of material such as Nylon 6, Nylon 12, Nylon PPS, or other macromolecule materials according to clients' requirement



Physical & Magnetic properties Of Injection SmCo Bonded Magnet

P/N

SCI-3

SCI-8

Br (mT)

300-400

550-680

bHc(kA/m)

199-279

334-462

iHc(kA/m)

716-1194

716-1194

(BH)max(kJ/m3)

20-28

48-64

Recoil permeability

1.05-1.1

1.05-1.1

Recoil temperature coeffiient of Br. (%/ )

-0.04(15-100 )

-0.04(15-100 )

Magnetizing field (Ka/m)

2786

2786

Density(g/cm3)

3-6

4-6

Ring crushing strength constant (N/mm2)

> 76

> 76
