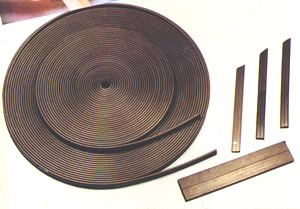

Flexible Magnetic Extrusion

Flexible Magnetic Extrusions

Flexible Magnetic Strips and Custom Profile are thermoplastic permanent magnetic Extrusions.It can provide superior holding power and widely used in stationery,household appliance,water-tight appliance.According to its magnetic property,it is divided into anisotropic and isotropic;according to its magnetization way,it is divided into surface magnetization and penetration magnetization (longitudinal,transverse and bilateral).





Magnetic properties of extruded magnetic strip

Code
 Br Hcb Hcj (BH)max
Forming way
 Size
T KA/m KA/m KJ/m3 Max Length(m) Max Width(mm) Height(mm)
YXZJ-1 0.13~0.18 80~115 100~160 4~6.4 Extrusion 100 400 0.4~1.1
YXZJ-2 0.18~0.22 100~140 120~190 6.4~8.0 Extrusion 2 930 0.6~3

Physical properties of extruded magnetic strip

Code Tensile Strength (MPa) Elongation Rate (%) Hardness (SHA) Temperature (oC) Density (g/cm3)
YXZJ-1 5~10 30~100 85~98 -10~80 3.6~3.7
YXZJ-2 5~10 40~100 85~98 -10~80 3.6~3.7

EXTRUDED STRIP MAGNET-FLAT PROFILE(ADGESIVE BACKED)MAGNET TO MAGNET APPLICATIONS

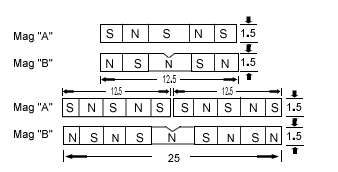

The 12.5mm extrusion Mag "A" and Mag "B" allows perfect alignment or mating between profiles
The two separate 12.5mm Mag "A" will perfectly align/mate to the 2.5m Mag "B" profile
The magnet to magnet applications are most useful for fixing of posters and graphics in display systems. In addition to Mag "A"/Mag"B", other types of self aligning systems can be manufactured on request.

EXTRUDED STRIP MAGNET-FLAT PROFILE (ADHESIVE BACKED) MAGNET TO STEEL APPLICATION

Satin white steel strip comes in 30metre rolls. It is extremely useful for work in magnet systems where there is no convenient steel/ferrous mating surface. As magnet to steel adhesion does not perfectly align/mate steel strip can be very useful to mount posters etc. on out-of-square frames.

Steel Strip mm

Steel Width

Thickness

Adhesive

Standard

Foam backed

12.5

0.2

20

0.2

A popular application of steel strip/magnet application in Europe is holding double glazing frames to wooden window frames. This could equally apply in Africa to hold mosquito netting frames to wooden/aluminum window frame.
