Sintered NdFeB Magnet

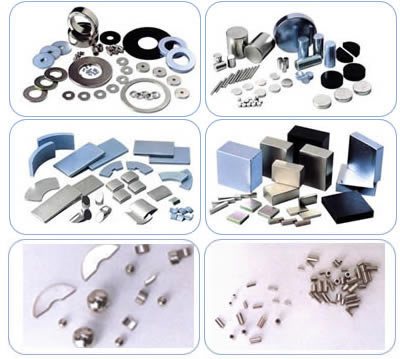

Sintered NdFeB Magnet

Neodymium Iron Boron (NdFeB), the most powerful y Rare Earth magnet available today, possesses high energranging from 8MGOe to 48MGOe and wonderful coercive force. As the third generation of Rare Earth permanent magnet, NdFeB products are quite a bit less expensive, and are mechanically stronger and less brittle than SmCo, also density of NdFeB products is about 13% smaller than SmCo products. Because NdFeB magnets are more prone to oxidation than any other magnet alloy, for most applications, coating or plating the magnets is recommended.

Sintered NdFeB magnets, have the characteristics of :

  1. Extreme strong Br Resident induction.
  2. Excellent demagnetization resistance capability.
  3. Good Price relative to its high magnetic properties.
  4. Coating is needed for NdFeB

Surface Treatment Method: Type Information

Metallic Zinc, Nickel, Nickel+Nickel, Copper+Nickel, Nickel+Copper+Nickel,

Gold, Organic Epoxy, Nickel+Epoxy coating

Temporary Surface: Passivation

MAGNETIC AND PHYSICAL CHARACTERISTICS (NdFeB)

TYPE

Remanence
Br

Coercivforce
bHc

Intrinsic coercive force iHc

Max. energy product
(BH) max

Working Temperature

KGs

T

KOe

KA/m

KOe

KA/m

MGOe

KJ/m³

1 N-30

10.8-11.2

1.08-1.12

9.8-10.5

780-836

≥12

≥955

28-30

223-239

80

2 N-33

11.4-11.7

1.14-1.17

10.5-11.0

836-876

≥12

≥955

31-33

247-263

80

3 N-35

11.7-12.1

1.17-1.21

10.8-11.5

860-915

≥12

≥955

33-35

263-279

80

4 N-36

11.9-12.2

1.19-1.22

10.8-11.5

860-915

≥12

≥955

34-36

271-287

80

5 N-38

12.2-12.6

1.22-1.26

10.8-11.5

860-915

≥12

≥955

36-38

287-303

80

6 N-40

12.6-12.9

1.26-1.29

10.5-11.0

836-876

≥12

≥955

38-40

303-318

80

7 N-42

12.9-13.2

1.29-1.32

10.5-11.0

836-876

≥12

≥955

40-42

318-334

80

8 N-43

13.0-13.3

1.30-1.33

10.5-11.0

836-876

≥12

≥955

41-43

326-342

80

9 N-45

13.3-13.7

1.33-1.37

10.5-11.0

836-876

≥12

≥965

43-45

342-358

80

10 N-27M

10.2-10.6

1.02-1.06

9.6-10.1

764-804

≥15

≥1194

25-27

199-215

100

11 N-30M

10.8-11.2

1.08-1.12

10.1-10.6

804-844

≥15

≥1194

28-30

223-239

100

12 N-33M

11.4-11.7

1.14-1.17

10.5-11.0

844-884

≥15

≥1194

31-33

247-263

100

13 N-35M

11.7-12.1

1.17-1.21

10.8-11.5

860-915

≥15

≥1114

33-35

263-279

100

14N-36M

11.9-12.2

1.19-1.22

11.1-11.6

884-923

≥15

≥1194

34-36

271-287

100

15 N-38M

12.2-12.6

1.22-1.26

10.8-11.5

860-915

≥14

≥1114

36-38

287-303

100

16 N-40M

12.6-12.9

1.26-1.29

10.8-11.5

860-915

≥14

≥1114

38-40

303-318

100

17 N-42M

12.9-13.2

1.29-1.32

10.8-11.4

860-907

≥14

≥1114

40-42

318-334

100

18 N45M

13.3-13.7

1.33-1.37

10.8-11.4

860-907

≥17

≥1114

43-45

334-358

100

19 N-27H

10.2-10.6

1.02-1.06

9.6-10.1

764-804

≥17

≥1353

25-27

199-215

120

20 N-30H

10.8-11.2

1.08-1.12

10.1-10.6

804-844

≥17

≥1353

28-30

223-239

120

21 N-33H

11.4-11.7

1.14-1.17

10.6-11.1

844-884

≥17

≥1353

31-33

247-263

120

22 N-35H

11.7-12.1

1.17-1.21

10.8-11.5

860-915

≥17

≥1353

33-35

263-279

120

23 N-36H

11.9-12.2

1.19-1.22

11.1-11.6

884-923

≥17

≥1353

34-36

271-287

120

24 N-38H

12.2-12.6

1.22-1.26

11.5-12.0

915-955

≥17

≥1353

36-38

287-303

120

25 N-40H

12.6-12.9

1.26-1.29

11.5-12.0

915-955

≥17

≥1353

38-40

303-318

120

26 N-42H

12.9-13.2

1.29-1.32

11.5-12.0

915-955

≥17

≥1353

40-42

318-334

120

27N-27SH

10.2-10.6

1.02-1.06

9.6-10.1

764-804

≥20

≥1592

25-27

199-215

150

28N-30SH

10.8-11.2

1.08-1.12

10.1-10.6

804-844

≥20

≥1592

28-30

223-239

150

29N-33SH

11.4-11.7

11.4-11.7

10.6-11.1

844-884

≥20

≥1592

31-33

247-263

150

30N-35SH

11.7-12.1

1.17-1.21

10.8-11.5

860-915

≥20

≥1595

33-35

263-279

150

31N-38SH

12.1-12.5

1.21-1.25

10.8-11.5

860-915

≥20

≥1592

36-38

287-302

150

32N-40SH

12.6-12.9

1.26-1.29

10.8-11.5

860-915

≥20

≥1592

38-40

303-318

150

33N25UH

9.8-10.2

0.98-1.02

9.2-9.6

732-764

≥25

≥1990

23-25

183-199

180

34N28UH

10.4-10.8

1.04-1.08

9.8-10.2

780-812

≥25

≥1990

26-28

207-223

180

35N30UH

10.8-11.2

1.08-1.12

10.1-10.6

804-844

≥25

≥1990

28-30

223-239

180

36N35UH

11.7-12.1

1.17-1.21

10.5-11.2

836-890

≥25

≥1989

33-35

263-278

180

37N25EH

9.8-10.2

0.98-1.02

9.2-9.6

732-764

≥30

≥2387

23-25

183-199

200

38N28EH

10.4-10.8

1.04-1.08

9.8-10.2

780-812

≥30

≥2387

26-28

207-223

200

39N30EH

10.8-11.2

1.08-1.12

10.1-10.6

804-844

≥30

≥2387

28-30

223-239

200

Remark: The above mentioned data of magnetic and physical characteristics are given at room temperature

** The open flux irreversible loss of the testing sample at this temperature5%
