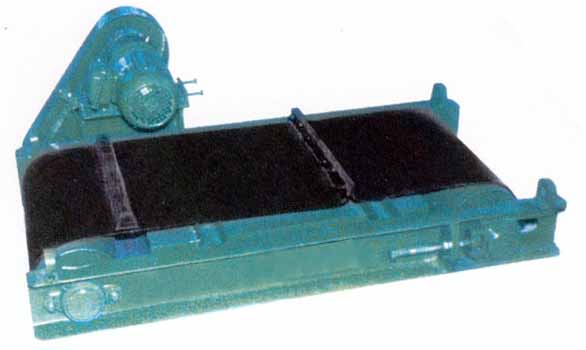

Home > Products > Magnetic separator > ZCY-Q Light-duty Self-cleaning Permanent Magnetic Separators
Magnetic Separator
inlp

Feature:

  • Small Volume, be called light-duty belt permanent magnetic separator. Length: 70% of ZCY-C type, Height: 86% of ZCY-C type.
  • Low noise, continuously attracting and cleaning the metal substances.
  • Light weight, ca.76% of ZCY-C type.
  • Compact structure, small components, easily to be lifted, installed, maintained, being economical and applied.
Fan Cooling Electromagnetic Separators d

Technical Parameters of ZCY-Q Light-duty Self-cleaning Permanent Magnetic Separators

Type
Belt Width
Belt Velocity Adaptive
Suspension Height Rated(SHR) H
Magnetic Intensity at SHR
Catching Ability
Working Style
Driven Power

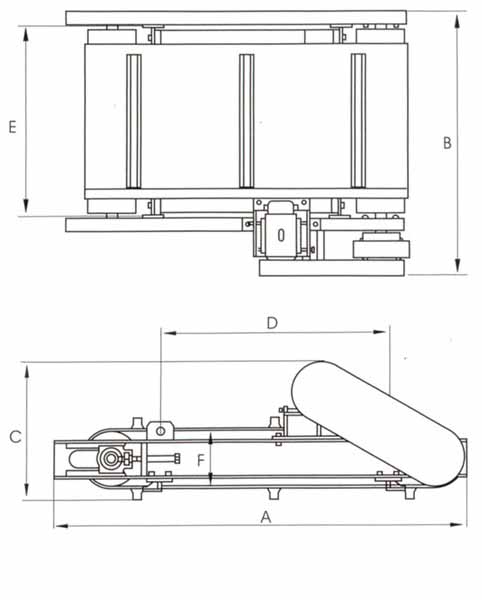

Outline Dimensions (mm)
Weight
mm
m/s
mm
mT
kg
kw
A
B
C
D
E
F
kg
ZCY-Q40
400
≤2.0
100
≥40
0.1~5
Contimuously
0.75
1164
855
615
505
550
260
380
ZCY-Q50
500
≤2.5
150
≥50
0.75
1322
1006
615
622
672
260
490
ZCY-Q65
650
≤2.5
200
≥50
1.1
1492
1156
615
722
822
260
640
ZCY-Q80
800
≤3.15
250
≥60
0.1~10
1.5
1712
1385
635
972
1022
260
850
ZCY-Q100
1000
≤4.0
300
≥60
2.2
1882
1535
635
1122
1222
260
1300


(For Reference Only)
