Feature:

  • Especially suitable for outdoors installation and different kinds of dust environment.
  • The electro wire core has been fabricated under special treatment, which makes the equipment to have unique features like anti-oxidation, anti-rust, better insulation, large area for heat releasing, low temperature rise, and better refrigeration performance, etc.
  • Equipped with fan-cooling system.
  • Optional magnetic force at the suspension height rated: 500Gs, 700Gs, 1200Gs, 1500Gs etc.

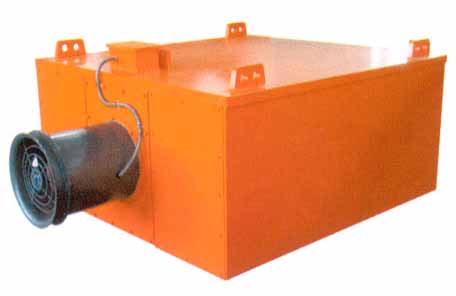

Fan Cooling Electromagnetic Separators d

Technical Parameters of ZCDA Plate Electromagnetic Separators

Type
Belt Width
Cooling Method
Suspension Height Rated(SHR) H
Magnetic Intensity at SHR
Excitation power
Cooler Power

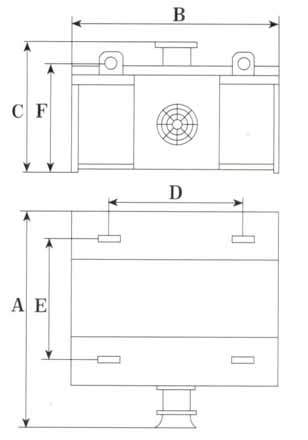

Outline Dimensions (mm)
Weight
mm
mm
mT
kw
kw
A
B
C
D
E
F
kg
ZCDA-6
650
Fan Cooling
200
≥70
≤3
0.37
1273
850
475
743
788
387
640
ZCDA-8
800
250
≤4.5
0.55
1527
1050
578
920
955
495
1300
ZCDA-10
1000
300
≤6
0.55
1727
1150
651
1013
1074
568
1690
ZCDA-12
1200
350
≤8.5
1.1
2052
1500
738
1351
1434
665
2435
ZCDA-14
1400
400
≤9.5
1.1
2243
1700
791
1550
1634
718
3535
ZCDA-16
1600
450
≤14
1.5
2505
1900
810
1750
1842
742
5170
ZCDA-18
1800
500
≤16.5
4.4
2770
2300
1160
1990
2040
1100
9000

Type
Belt Width
Suspension Height Rated(SHR) H
Magnetic Intensity at SHR
Driven Power
Excitation power
Outline Dimensions (mm)
Weight
mm
mm
mT
kw
kw
A
B
C
kg
ZCDA-6
T1
650
200
90
0.37
4.5
1280
1050
510
990
T2
120
0.55
5.5
1380
1150
630
1200
T3
150
0.55
7.5
1380
1150
780
2000
ZCDA-8
T1
680
250
90
0.55
5.5
1538
1050
630
1060
T2
120
0.55
6
1538
1250
810
2100
T3
150
1.1
12
1538
1250
830
2900
ZCDA-10
T1
1000
300
90
1.1
7.5
1727
1170
621
1800
T2
120
1.1
12
1727
1300
790
3250
T3
150
1.5
15.5
1727
1300
870
4300
ZCDA-12
T1
1200
350
90
1.1
9
2052
1500
743
2600
T2
120
1.1
15
2052
1500
950
4050
T3
150
1.1×2
20.5
2052
1590
1060
5550
ZCDA-14
T1
1400
400
90
1.1
11.5
2243
1700
863
3400
T2
120
0.55×2
16
2243
1700
990
6300
T3
150
1.1×2
22.5
2243
1700
1090
8600
ZCDA-16
T1
1600
450
90
1.5
17
2290
1900
883
4850
T2
120
1.1×2
24
2510
1900
1125
9050
T3
150
1.1×2
30
2510
1900
1210
11200
ZCDA-18
T1
1800
500
90
1.1×2
20
2770
2150
1150
9300
T2
120
1.1×2
25.5
2770
2150
1330
11000
T3
150
1.5×2
34
2770
2150
1250
14300
ZCDA-20
T1
2000
550
90
1.1×2
22.5
2880
2300
1240
10700
T2
120
1.1×2
30.5
2880
2300
1340
13200
T3
150
2.2×2
40
2880
2300
1455
18000
ZCDA-22
T1
2200
600
90
1.1×2
26
3070
2500
1320
13000
T2
120
1.5×2
34
3070
2500
1430
16000
T3
150
2.2×2
43
3070
2500
1570
22000
ZCDA-24
T1
2400
650
90
1.1×2
28
3170
2700
1410
16500
T2
120
1.5×2
37
3170
2700
1530
19800
T3
150
2.2×2
49
3170
2700
1690
25000


(For Reference Only)
